Exploring the Ins and Outs of a Line Isolation Monitor (LIM): Why Your Hospital’s Safety Depends on It
In the fast-paced world of healthcare, where every second counts and patient safety is the top priority, the reliability of electrical systems can make all the difference. A crucial device involved in the system is a Line Isolation Monitor (LIM), particularly needed in wet procedure locations, such as intensive care units (ICUs) and operating rooms (ORs). A LIM continuously monitors the overall insulation integrity of an ungrounded electrical system, ensuring patient safety by detecting potential ground faults before they become hazardous.
Understanding "line" in the context of operating rooms
In an operating room, "Line" refers to all components in an ungrounded electrical system. The primary goal of such a system is to isolate and insulate every electrical device from the grounded system, reducing the risk of electrical shock to patients and medical staff.
It’s important to note that an ungrounded system is more than just the outlets and wiring behind the walls, every device plugged into these outlets becomes part of the ungrounded system.

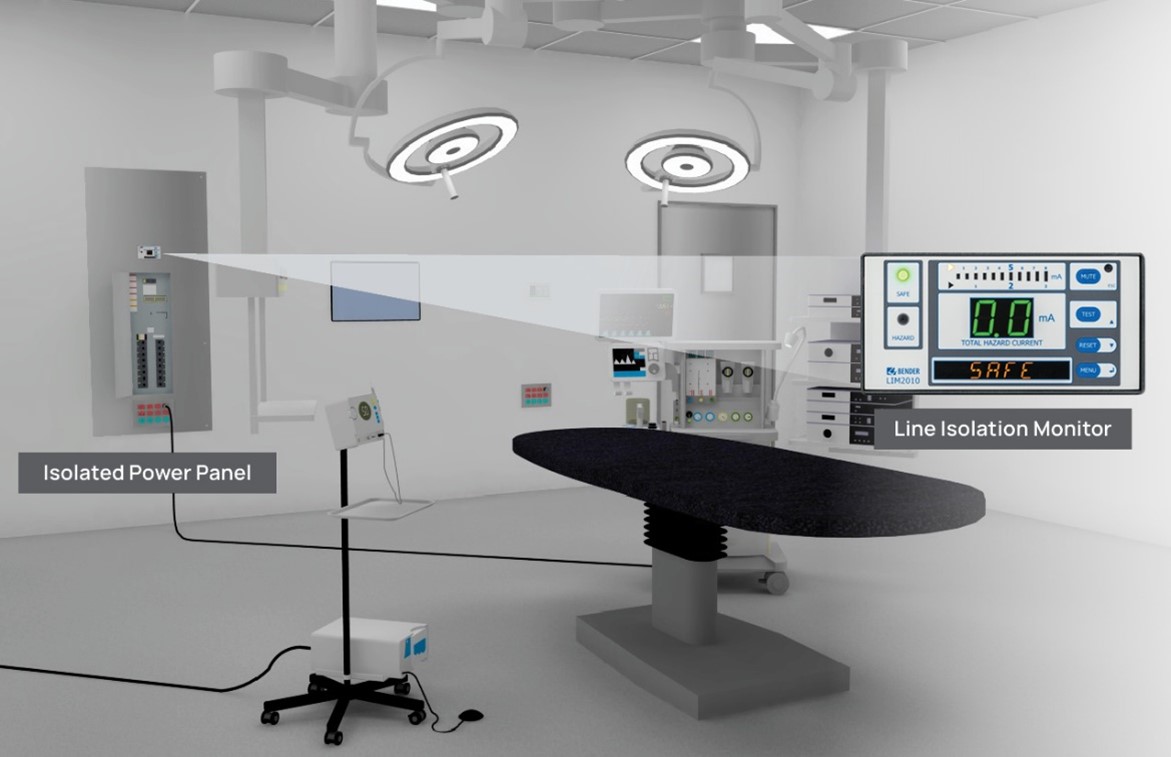

Components of an ungrounded electrical system
In an ungrounded system, all points are galvanically isolated from the ground, preventing direct current flow to earth. Several components in an operating room contribute to an ungrounded power system, including:
- Line isolation monitor (LIM): Continuously tracks insulation integrity and detects ground faults.
- Receptacles (electrical outlets): Distributed throughout the operating room.
- Isolation transformer secondary winding: The primary winding connects to an isolated electrical system, while the secondary provides power to the ungrounded system.
- Circuit breakers (CBs): Located in the isolation power panel (IPP).
- Other essential equipment:
- Surgical lights within six feet of the patient
- Power cords insulated to prevent copper conductors from touching the ground
- Medical devices such as suction pumps, ventilators, electrocautery tools (e.g., Bovies), heart monitors, and oxygen monitors

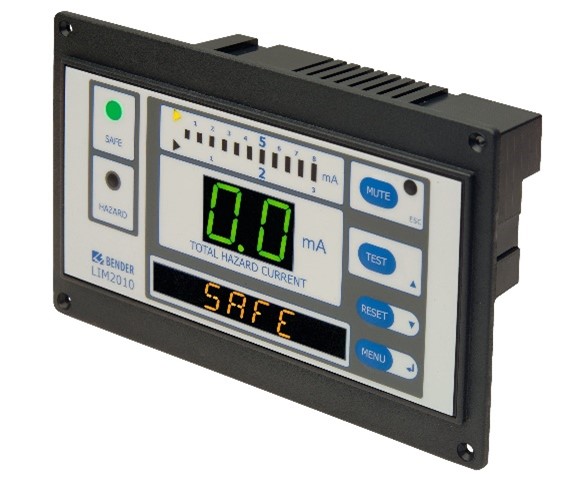

Why is a LIM essential?
Think of your LIM as a vigilant security guard, always on the lookout for potential threats to your system’s insulation. In an ideal scenario, all electrical components, including power cords, remain insulated from the ground. However, real-world conditions lead to wear and tear, loose connections, and component failures, potentially resulting in ground faults.
One common cause of insulation damage is rolling carts running over power cords, which can degrade insulation over time. Additionally, frequent movement and handling of medical equipment contribute to wire fatigue and eventual failure. A Bender LIM continuously detects these faults, alerting medical staff before they escalate into dangerous situations. This proactive approach ensures that hospitals maintain a safe, state-of-the-art electrical infrastructure for patient care, and provides added benefits, including:
- Measuring of the system’s leakage impedance to ground to ensure safe leakage levels per code requirements
- Eliminating interference with electrical medical equipment connected to the isolated power panel
- Allowing for interfacing with other Bender devices to provide a complete system solution
Your front line of defense in operating rooms and healthcare facilities
Your isolated power system is your front line of defense against electric shock in wet procedure locations, with your LIM as a lookout, giving warning when a hazard is on the horizon.
But what do you do when your monitor gets old, or dies unexpectedly? How do you prevent OR downtime and placing your staff and patients in potentially hazardous situations? Let the extensive experience of our authorized technicians work for you!
Utilizing Bender service for testing and consultation allows you to:
- Eliminate operating room downtime
- Identify weaknesses, wear, and aging in your system before an old LIM becomes out of commission
- Avoid unexpected failure of outdated and obsolete equipment
- Prevent possible safety hazards to patients and staff
- Retrofit a LIM of any make, model, or vintage
Contact our team for a customized solution that meet’s your needs and the industry’s ever-changing regulations. We look forward to helping you and your team stay safe and running on time!
