Modular Dual Voltage Isolation Power Panels (MID)

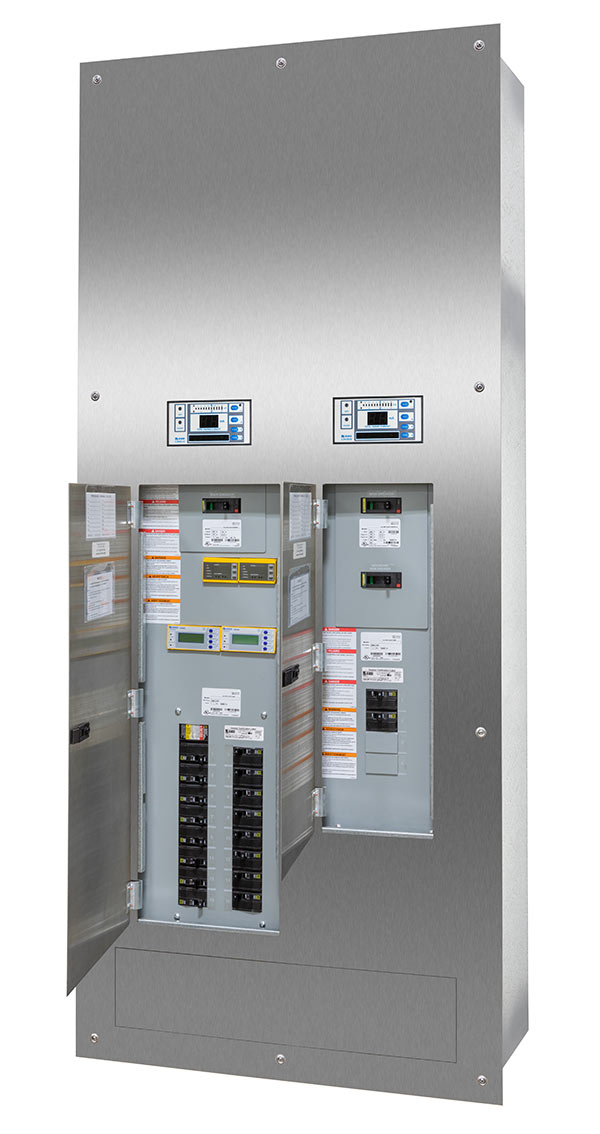

Bender's standard hospital panel provides isolated power service and protection to operating rooms and other critical care areas. Designed in strict compliance with UL 1047, UL 1022, and UL 50, Bender isolated power panels offer the most up-to-date technology for all isolated power distribution requirements.

Dual output voltage isolated power panels provide two separate voltage outputs using a single isolation transformer. A standard dual output voltage panel consists of the following:

Standard Features

  • Isolation transformer with corresponding main circuit breaker
  • Bender LIM2010 Line Isolation Monitor (LIM), for effective LIM Testing
  • Primary circuit breaker
  • Secondary main circuit breaker for low (120 V) side
  • Up to Four (4) branch circuit breakers for high (208 V or 240 V) side
  • Reference Ground Bus
  • Bolt-on style load center
  • 16, 2-pole 20 A branch circuit breakers (consult factory for alternative configurations)
  • Front trim with door in door concealed hinge

Advanced Optional Features

  • Provision(s) for receptacles and/or ground jacks
  • Integrated ground fault location system
  • Transformer load monitoring
  • Remote communication with standalone web server and building management system integration
  • On-site services and support

Click here for more information on our on-site support services.
