Resistance Grounded Systems (HRG/LRG)

Neutral Grounding Resistors (NGRs) are used to limit the maximum ground-fault current. Restriction of fault current lowers hazards and reduces damage done to equipment. High Resistance Grounding (HRG) systems are often used on industrial and critical power applications to maintain system uptime during a first ground fault. HRG systems are also used in tripping applications to help control touch potential on portable loads and improve personnel safety.

Bender Low Resistance Grounding (LRG) solutions reduce the current to 100 A and higher. Customers requiring higher ground-fault current for older, less sensitive ground-fault relays can retrofit a Bender LRG into the application. LRG options adapt to older systems needing stronger ground-fault currents, enhancing electrical safety and system reliability.

Advanced HRG and LRG packages include neutral grounding resistor monitors to measure neutral voltage, ground-fault current, continuity of the NGR connection to ground, and may also include phase voltage indication and feeder level fault location.

Product overview

Questions? Contact us!

Type
Reset

15 Products found

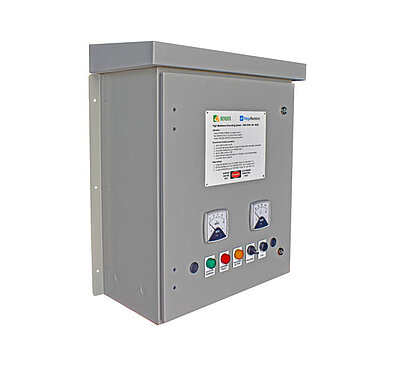

HRG Series 1

HRG Series 1 integrates a neutral-grounding resistor assembly

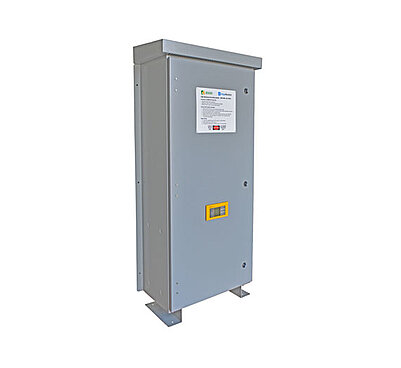

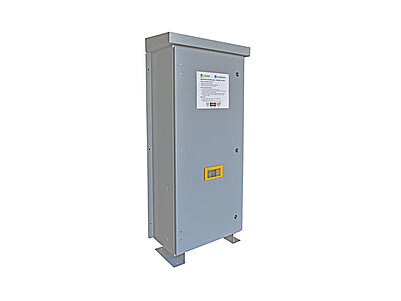

HRG Series 2

BHRG Series 2 HRG systems integrate a neutral-grounding resistor

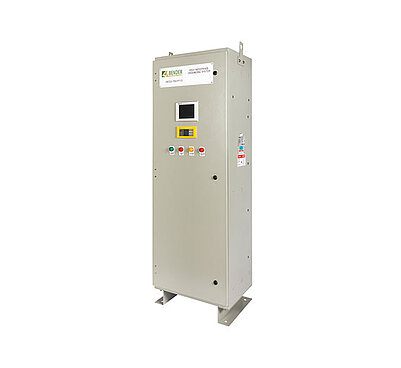

HRG Series 3

Integrates a neutral-grounding resistor assembly with pulsing function and NGR monitoring

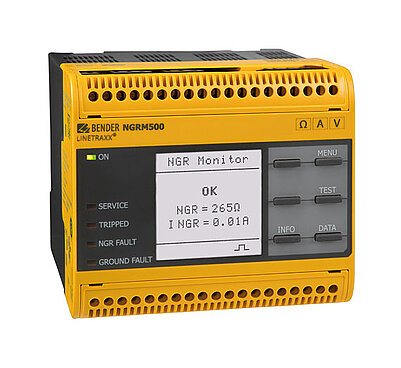

LINETRAXX® NGRM500

Monitor for use in high-resistance grounded systems

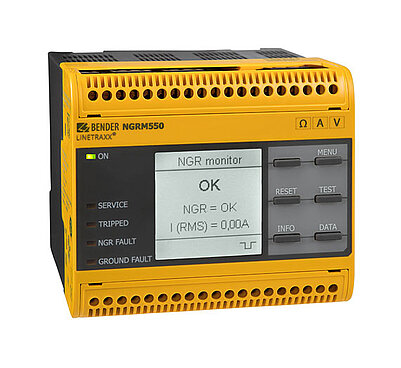

LINETRAXX® NGRM550

Monitor for use in low-resistance grounded systems

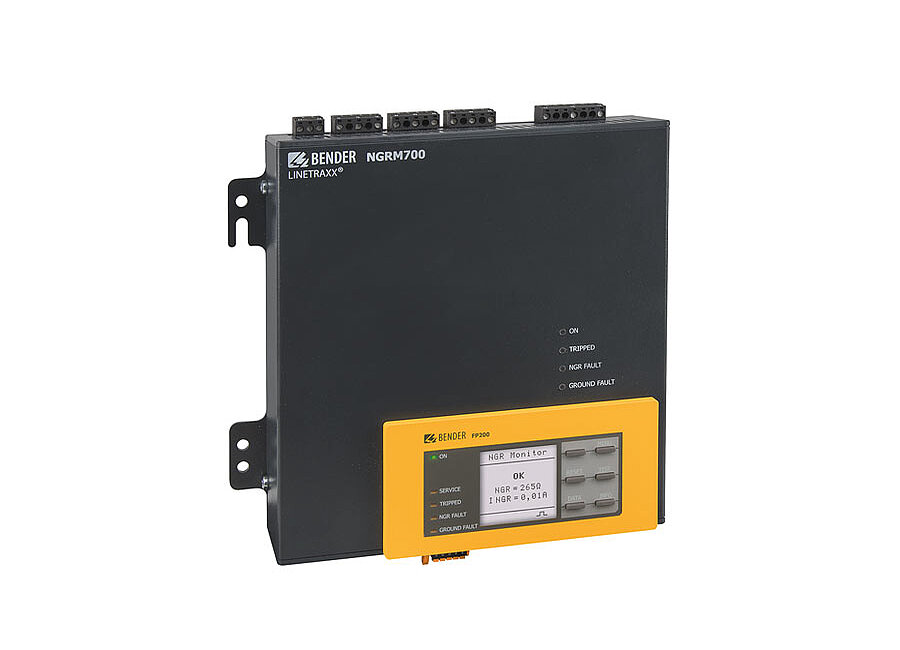

LINETRAXX® NGRM700

Monitor for use in high-resistance grounded systems

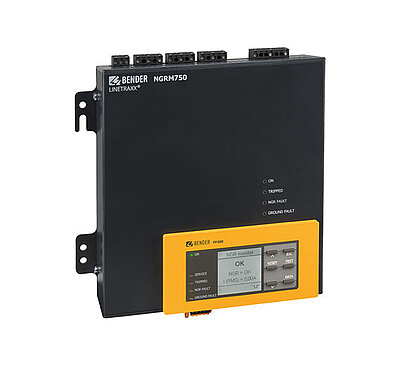

LINETRAXX® NGRM750

Monitor for use in low-resistance grounded systems

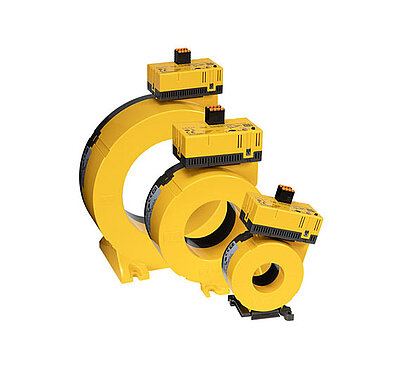

LINETRAXX® CTUB103
LINETRAXX® CTUB103

AC/DC sensitive measuring current transformer

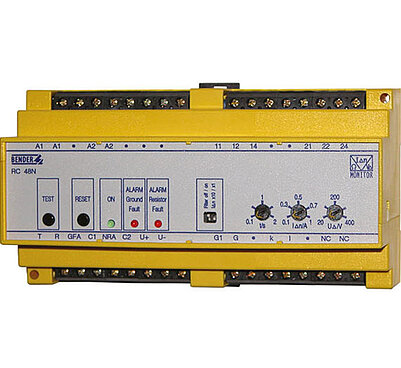

RC48N
RC48N

Basic Neutral Grounding Resistor Monitor

RFB-700/500

Replacement kit for the discontinued and obsolete Federal Pioneer DSP-MKII and DSA systems

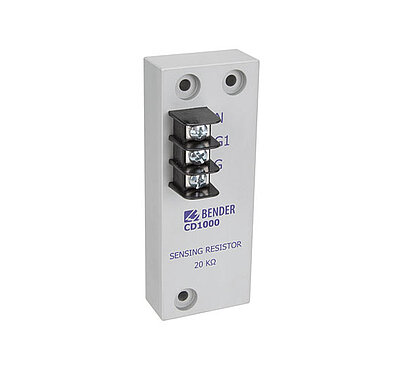

CD1000
CD1000

Coupling device for HRG applications up to AC 690 V and/or DC 400 V

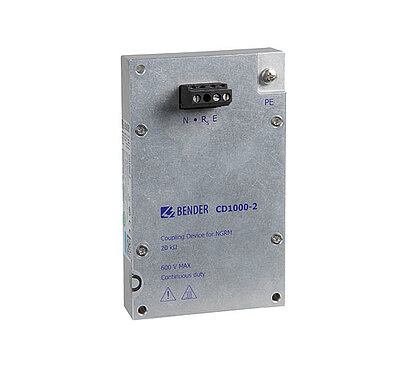

CD1000-2
CD1000-2

Coupling device for HRG applications up to AC 1000 V and/or DC 690 V

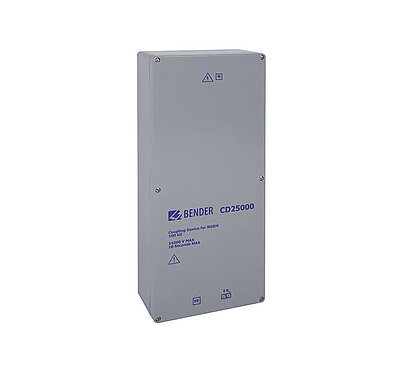

CD25000
CD25000

Coupling device for HRG applications up to AC 25 kV and/or DC 14.5 kV

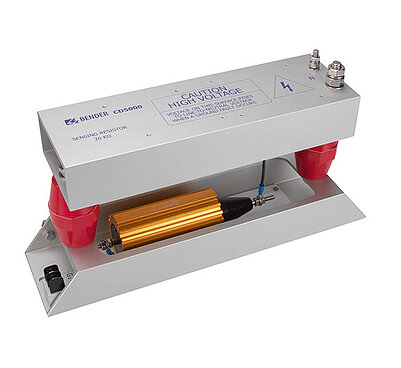

CD5000
CD5000

Coupling device for HRG applications up to AC 4300 V and/or DC 2500 V.

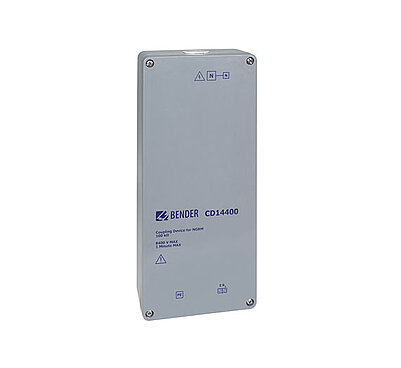

CD14400
CD14400

Coupling device for HRG applications up to a system voltage of 14400 V
