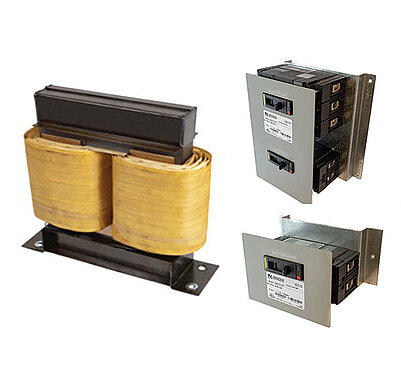

XMK Series
Bender's Modular Hospital Grade Isolation Transformer Kits, for Modular Isolated Power Systems, includes a transformer which provides isolation between configured primary and secondary voltages and its’ corresponding Main (and Secondary Main) Breaker arrangement.
Standard single-phase transformers are configured at the factory for a single primary voltage and a single secondary voltage. Dual secondary transformers are configured at the factory for a single primary voltage, a secondary voltage, and an additional secondary voltage rated for 120 VAC.
BENDER isolation transformers are intended for use as a part of an Isolated Power System. Refer to Bender's offering of Modular Isolated Power Panels for more information.
Click here for more information on our onsite support services.
In a hurry? Ask about our quick ship options to get your panels shipped in less than 72 hours!
Bender's Modular Hospital Grade Isolation Transformer Kits, for Modular Isolated Power Systems, includes a transformer which provides isolation between configured primary and secondary voltages and its’ corresponding Main (and Secondary Main) Breaker arrangement.
Standard single-phase transformers are configured at the factory for a single primary voltage and a single secondary voltage. Dual secondary transformers are configured at the factory for a single primary voltage, a secondary voltage, and an additional secondary voltage rated for 120 VAC.
BENDER isolation transformers are intended for use as a part of an Isolated Power System. Refer to Bender's offering of Modular Isolated Power Panels for more information.
Click here for more information on our onsite support services.
In a hurry? Ask about our quick ship options to get your panels shipped in less than 72 hours!
Features
- Single-phase (60 Hz), copper-wound transformers with primary and secondary voltages configured at the factory *Consult factory for 50 Hz configurations
- Power rating configurable up to 25 kVA
- Class H rated insulation
- Electrostatic shield between primary and secondary windings, grounded to enclosure
- Maximum 37 dB sound level
- Maximum leakage current in compliance with UL 1047 (tables 30.1 and 30.2) and CSA Z32.2
- Upgrade existing Modular Isolated Power Systems with a new transformer kit
- Mounting hardware provided for ease of installation
- Consult factory for 0.1s selective coordination offerings
Applications
- Operation Rooms
- Intensive Care Units
XMK Series Variant(s)
For assistance with ordering please contact Medical.Sales@Bender-us.com or call (610) 383-9200.
Optional Accessories for XMK Series
No accessories are available for this product
Note: this item must be part of an isolated power system.
