Bender's standard hospital panel provides isolated power service and protection to operating rooms and other critical care areas. Designed in strict compliance with UL 1047, UL 1022, and UL 50, Bender isolated power panels offer the most up-to-date technology for all isolated power distribution requirements. Panels include:

  • Isolation transformer, rated to your requirements
  • Primary circuit breaker
  • Eight (8) 2-pole circuit breakers, field expandable to 16
  • LIM2010 line isolation monitor


A wide range of additional features and options are available, including:

  • Provision(s) for receptacles and/or ground jacks
  • Circuit control via PLC
  • Integrated ground fault location system
  • Transformer load monitoring
  • Remote communication system integration


Standard Features: Dual System Panel

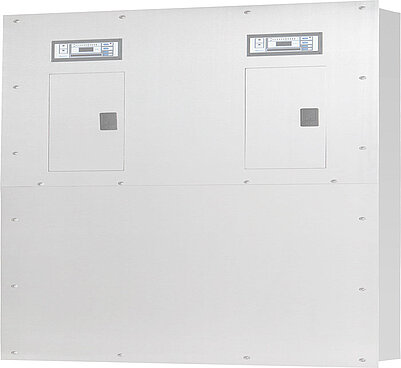

Dual system panels provide two separate voltage outputs from two isolation transformers. This system is equivalent to two independent standard isolated power panels in one   enclosure. A standard dual system panel consists of the following:

  • Provision for two (2) 2-pole branch circuit breakers for 208 V or 240 V side
  • Two (2) single-phase isolation transformers
  • Two (2) Bender LIM2010 Line Isolation Monitor (LIM)
  • Two (2) Reference ground buses
  • Two (2) Primary circuit breakers
  • Branch circuit breakers (Qty. 8 standard, field-convertable up to 16 per system)
