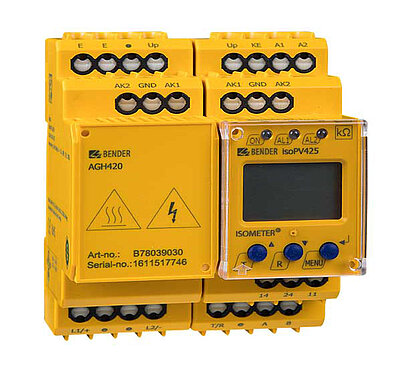

ISOMETER® isoPV425 with AGH420
- Ground-fault monitoring device for AC and DC IT systems
- Application photovoltaic systems up to AC 690 V/DC 1000 V
- Automatic adaptation to the system leakage capacitance up to 1000 μF
- Measurement of the nominal system voltage (RMS) with undervoltage and overvoltage detection
The ISOMETER® of the isoPV425 series monitors the insulation resistance of unearthed AC/DC main circuits (IT systems) with nominal voltages of 3(N)AC, AC, AC/DC 0…690 V or DC 0…1000 V.
DC components existing in AC/DC systems do not influence the operating characteristics. A separate supply voltage allows deenergised systems to be monitored as well. The maximum permissible system leakage capacitance is 1000 µF.
- Ground-fault monitoring device for AC and DC IT systems
- Application photovoltaic systems up to AC 690 V/DC 1000 V
- Automatic adaptation to the system leakage capacitance up to 1000 μF
- Measurement of the nominal system voltage (RMS) with undervoltage and overvoltage detection
The ISOMETER® of the isoPV425 series monitors the insulation resistance of unearthed AC/DC main circuits (IT systems) with nominal voltages of 3(N)AC, AC, AC/DC 0…690 V or DC 0…1000 V.
DC components existing in AC/DC systems do not influence the operating characteristics. A separate supply voltage allows deenergised systems to be monitored as well. The maximum permissible system leakage capacitance is 1000 µF.
Features
- Monitoring for unearthed AC and DC systems with galvanically connected rectifiers or inverters
- Measurement of the nominal system voltage Un (True RMS) with undervoltage and overvoltage detection
- Measurement of DC voltages system to earth (L+/PE and L-/PE)
- Automatic adaptation to the system leakage capacitance up to 1000 μF
- Automatic device self-test with connection monitoring
- Selectable start-up delay, response delay and delay on release
- Two separately adjustable response value ranges of 1…500 kΩ (Alarm 1, Alarm 2)
- Alarm signalling via LEDs (AL1, AL2), a display and alarm relays (K1, K2)
- N/C operation or N/O operation selectable
- Measured value indication via multi-functional LCD
- Fault memory can be activated
- RS-485 (galvanically isolated) including the following protocols:
– BMS interface (Bender measuring device interface) for data exchange with other Bender components
– Modbus RTU
– isoData (for continuous data output) - Password protection to prevent unauthorised parameter changes
Applications
- AC, DC or AC/DC main circuits
- Solar systems with directly connected inverters
- Solar systems with high system leakage capacitances
- Solar systems with high but slow voltage fluctuations
- Systems including switched-mode power supplies
ISOMETER® isoPV425 with AGH420 Variant(s)
| Type | Nominal system voltage* Un | Supply voltage* US | Art. No.** |
|---|---|---|---|
| isoPV425-D4 with AGH420 | DC 0…1000 V, AC 0…690 V | DC 24…240 V, AC 100…240 V | B71036303 B91036303 |
* Absolute values
**(B7… = push-wire terminal / B9… = screw-type terminal)
Optional Accessories for ISOMETER® isoPV425 with AGH420
| Type | Art. No. |
|---|---|
| Mounting clip for screw mounting (one piece per device) | B98060008 |
| Mounting frame XM420 | B990994 |
Downloads for ISOMETER® isoPV425 with AGH420
| Category | Name | Size | Language | Timestamp | D-/B-Number |
|---|---|---|---|---|---|
| Declarations of Conformity | UKCA - AGH | 122.7 KB | 2023/11/22 07:38:5822.11.2023 07:38:58 | ||
| Manuals | AGH420 | 1.5 MB | DE | 2023/10/31 09:43:3331.10.2023 09:43:33 | D00029 |
| Manuals | AGH420 | 1.5 MB | EN | 2023/10/31 09:43:3331.10.2023 09:43:33 | D00029 |
| Market Segment Brochures | Erneuerbare Energien: Photovoltaik | 2.0 MB | DE | 2023/06/16 09:52:0616.06.2023 09:52:06 | |
| Declarations of Conformity | UKCA - isoxx425 | 142.1 KB | 2023/06/12 05:32:0112.06.2023 05:32:01 | ||
| Market Segment Brochures | Renewable energies: Photovoltaics | 2.0 MB | EN | 2023/06/16 09:52:0616.06.2023 09:52:06 | |
| CE Declarations of Conformity | isoXX425 | 146.2 KB | 2023/07/14 05:24:4714.07.2023 05:24:47 | ||
| Quickstarts | isoPV425 | 1.2 MB | EN | 2023/05/26 06:26:1926.05.2023 06:26:19 | D00028 |
| Manuals | isoPV425 with AGH420 | 4.2 MB | EN | 2023/08/15 08:14:2815.08.2023 08:14:28 | D00029 |
| Datasheets | isoPV425 with AGH420 | 404.9 KB | EN | 2023/05/26 09:04:3126.05.2023 09:04:31 | D00029 |
| Software | Modbus RTU - Monitor isoxx425 V2.2.2 setup | 7.1 MB | 2019/05/13 10:31:5913.05.2019 10:31:59 |
