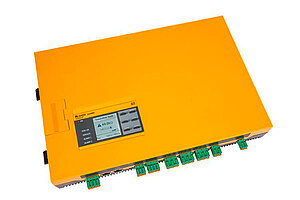

ISOMETER® isoPV1685DP

  • For large photovoltaic systems up to AC 1000 V / DC 1500 V
  • 2 Separately adjustable response values 200 Ω...200 kΩ
  • Automatic adaptation to the system leakage capacitance
    up to 4000 μF
  • Modbus RTU interface for connection to monitoring systems
  • User-friendly operation through integrated display

The device is used for insulation of large photovoltaic systems up to AC 1000 V/DC 1500 V designed as IT systems. The measurement method specially developed for slow voltage fluctuations (MPP tracking) monitors the insulation resistance even in systems equipped with large solar generator panels where extremely high system leakage capacitances up to 4000 µF against earth exist due to interference suppression methods.

Questions? Contact us!

isoPV1685DP
  • For large photovoltaic systems up to AC 1000 V / DC 1500 V
  • 2 Separately adjustable response values 200 Ω...200 kΩ
  • Automatic adaptation to the system leakage capacitance
    up to 4000 μF
  • Modbus RTU interface for connection to monitoring systems
  • User-friendly operation through integrated display

The device is used for insulation of large photovoltaic systems up to AC 1000 V/DC 1500 V designed as IT systems. The measurement method specially developed for slow voltage fluctuations (MPP tracking) monitors the insulation resistance even in systems equipped with large solar generator panels where extremely high system leakage capacitances up to 4000 µF against earth exist due to interference suppression methods.

Questions? Contact us!

Features

  • Automatic adjustment to very high system leakage capacitances up to 4000 µF
  • Special measuring method ideal for DC systems in combination with 50 Hz / 60 Hz systems
  • Separately adjustable response values Ran1 (alarm 1) and Ran2 (alarm 2) for prewarning and alarm
  • High-resolution graphic LC display for excellent readability and recording of the device status
  • Connection monitoring
  • Automatic device self test with automatic alarm message in the event of a fault
  • Graphical representation of the insulation resistance over time (isoGraph)
  • History memory with real-time clock (buffer for 13 days) for storing 1023 alarm messages with date and time
  • Freely programmable digital inputs and outputs
  • Remote setting of certain parameters via the Internet (COMTRAXX® gateway)
  • Remote diagnosis by the Bender service via the Internet
  • RS-485 interface for data exchange with other Bender devices
  • Measurement of insulation faults 200 Ω…200 kΩ
  • Integrated locating current injector up to 50 mA for insulation fault location
  • Display of insulation faults selectively located by EDS systems
  • Parameter setting of EDS systems
  • Customer-specific texts for each measuring channel via

Applications

  • Large PV systems designed as IT systems up to AC 1000 V/DC 1500 V

ISOMETER® isoPV1685DP Variant(s)

TypeResponse value systemSupply voltage*Nominal voltage UnArt. No.
isoPV1685DP-425200 Ω…200 kΩDC 18…30 VAC 0…1000 V/DC 0…1500 VB91065808

* Absolute values

Downloads for ISOMETER® isoPV1685DP

NameCategorySizeLanguageTimestampD-/B-Number
isoPV1685DP Datasheets 734.7 KB DE2023/05/3030.05.2023D00479
isoPV1685DP Datasheets 728.9 KB EN2023/05/3030.05.2023D00479
isoXX1685 CE Declarations of Conformity 89.1 KB 2023/06/1212.06.2023
UKCA - isoXX1685 Declarations of Conformity 122.0 KB 2023/06/1212.06.2023
isoPV1685DP Quickstarts 646.9 KB DE2024/01/1616.01.2024D00479
isoPV1685DP Quickstarts 646.9 KB EN2024/01/1616.01.2024D00479
isoPV1685DP Manuals 6.9 MB DE2023/09/2626.09.2023D00479
isoPV1685DP Manuals 7.0 MB EN2023/11/0303.11.2023D00479
