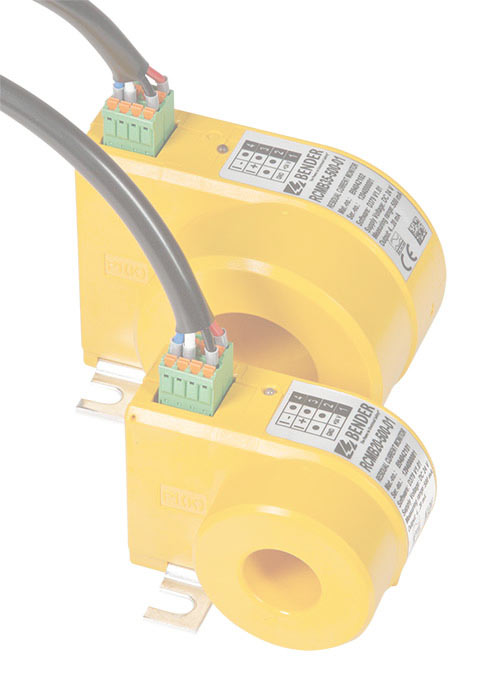

LINETRAXX® RCMB20-500-01 / RCMB35-500-01 / RCMB35-30-…

LINETRAXX® RCMB20-500-01 / RCMB35-500-01 / RCMB35-30-…

- This device series is in the discontinuation phase. -
Available until 31.12.2023.

  • Features
  • Ordering information
  • Downloads
    RCMB20-500-01/RCMB35-500-01
  • AC/DC sensitive measured value acquisition
  • Frequency range 0…500 Hz
  • Measuring current transformer, inside diameter 20 mm/35 mm
  • Measuring range 500 mA
  • Measuring time ≤ 180 ms
  • Supply voltage DC 24 V
  • Analogue output current DC 4…20 mA
  • Insensitive to load currents due to magnetic screen
  • CT connection monitoring using cyclical test current
  • Multicolour LED for operation and fault message display

  • RCMB35-30…
  • Integral switching output for controlling an undervoltage release
  • Combined test and reset button
  • Monitoring of the connection to the measuring current transformer with cyclical test current
  • Insensitive to load currents due to a full magnetic shielding
  • Multicolour LED indicating operation, response value exceeded and fault detected
  • AC/DC sensitive measured value acquisition
  • Response value IΔn ≤ 30 mA
  • Rated frequency range
    RCMB35-30-01: 0…1 kHz
    RCMB35-30-02: 0…10 kHz
  • Supply voltage DC 24 V
  • Measuring current transformer, inside diameter 35 mm

Variants of LINETRAXX® RCMB20-500-01 / RCMB35-500-01 / RCMB35-30-…


TypeSupply voltage US*Inside diameter/mmArt. No.
RCMB20-500-01DC 20,4…28,8 Vø 20B94042103
RCMB35-500-01DC 20,4…28,8 Vø 35B94042104
RCMB35-30-01DC 20,4…28,8 Vø 35B94042100
RCMB35-30-02DC 20,4…28,8 Vø 35B94042106
* Absolute values
