RCMB130 Séries

The AC/DC sensitive residual current monitoring module monitors electrically earthed power supplies up to 300 V and connected loads up to nominal currents of 32 A for leakage and fault currents. The module is intended for installation in distribution equipment such as PDUs (Power Distribution Units), outlet boxes or multiple socket-outlets and is supplied with DC 12…24 V.

The RCMB131-01 is designed for installation in PDUs and outlet boxes. The module can communicate with a master via an RS-485 interface via Modbus RTU.

The RCMB131-02 is designed for installation in PDUs and outlet boxes. The module outputs the rms value of the residual current via a PWM output, which is read out and evaluated by a higher-level circuit.

The RCMB132-01 is designed for installation in PDUs and outlet boxes. The module can communicate with a master via an RS-485 interface via Modbus RTU. It is possible to connect several devices in a daisy chain. For this purpose, the RCMB132-01 provides two identical connectors for RS-485 (incl. power supply).

The products of the RCMB13x series are shipped in bulk and come pre-configured. This makes them particularly suitable for serial integration into power distribution systems, machines or the like by the respective manufacturers (OEMs).

Questions? Contact us!

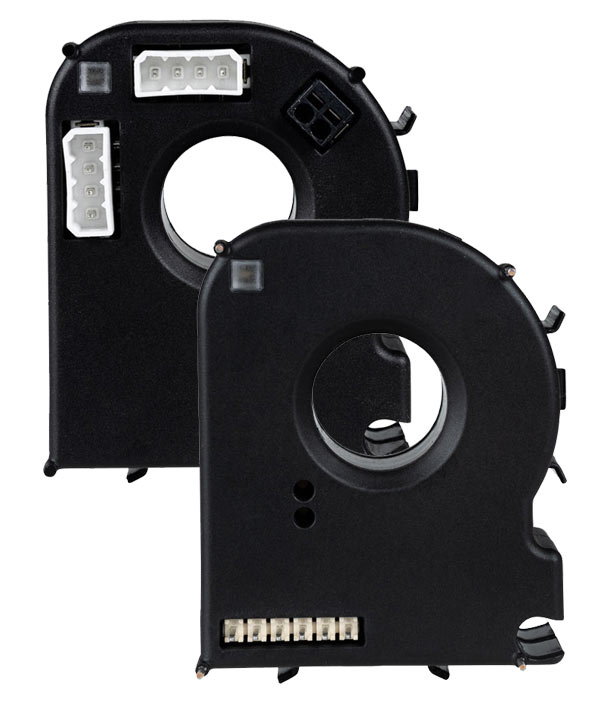

RCMB13x
RCMB13x

The AC/DC sensitive residual current monitoring module monitors electrically earthed power supplies up to 300 V and connected loads up to nominal currents of 32 A for leakage and fault currents. The module is intended for installation in distribution equipment such as PDUs (Power Distribution Units), outlet boxes or multiple socket-outlets and is supplied with DC 12…24 V.

The RCMB131-01 is designed for installation in PDUs and outlet boxes. The module can communicate with a master via an RS-485 interface via Modbus RTU.

The RCMB131-02 is designed for installation in PDUs and outlet boxes. The module outputs the rms value of the residual current via a PWM output, which is read out and evaluated by a higher-level circuit.

The RCMB132-01 is designed for installation in PDUs and outlet boxes. The module can communicate with a master via an RS-485 interface via Modbus RTU. It is possible to connect several devices in a daisy chain. For this purpose, the RCMB132-01 provides two identical connectors for RS-485 (incl. power supply).

The products of the RCMB13x series are shipped in bulk and come pre-configured. This makes them particularly suitable for serial integration into power distribution systems, machines or the like by the respective manufacturers (OEMs).

Questions? Contact us!

Features

  • AC/DC sensitive leakage and fault current monitoring for preventive maintenance
  • Suitable for PCB mounting (only RCMB131-x)
  • High resolution for implementing equipment leakage current monitoring
  • Measured value and alarm transmission via Modbus RTU (RS-485) (only RCMB13x-01)
  • Measurement signal output via PWM output (only RCMB131-02)
  • Frequency range DC…2 kHz
  • Compact design for monitoring nominal loads up to In = 32 A
  • Low load current sensitivity due to fully shielded measuring current transformer
  • Continuous monitoring of the connection to the measuring current transformer
  • Integrated test function
  • Supply voltage DC 12…24 V

RCMB130 Séries Variant(s)

TypeMeasuring rangeSupply voltage USArt. No.
RCMB131-010…100 mA (rms)DC 12…24 VB94042131
RCMB131-020…100 mA (rms)DC 12…24 VB94042132
RCMB132-01AC/DC ±100 mADC 12…24 VB94042136

Optional Accessories for RCMB130 Séries

Accessories for RCMB132-01

TypeArt. No.
Mounting foot MCCT20B91080111

Downloads for RCMB130 Séries

NameCategorySizeLanguageTimestampD-/B-Number
RCMB13x CE Declarations of Conformity 75.9 KB 2022/08/1212.08.2022
RCMB131-01 Datasheets 293.6 KB EN2019/05/1313.05.2019D00358
RCMB131-01 Manuals 847.9 KB EN2019/09/0909.09.2019D00358
RCMB131-02 Datasheets 272.6 KB EN2019/05/1313.05.2019D00354
RCMB131-02 Manuals 965.1 KB EN2019/05/1313.05.2019D00354
RCMB132-01 Datasheets 345.3 KB EN2020/05/2626.05.2020D00356
RCMB132-01 Manuals 264.3 KB EN2019/09/0909.09.2019D00356
RCMB132-01 Quickstarts 504.1 KB EN2021/10/1818.10.2021D00356
