7204 Series
- Display of measuring values from ground-fault monitoring devices
- Version S for increased shock and vibration resistance
- Input current 0…400 µA (7204/9604) / 0…20 mA (7220/9620)

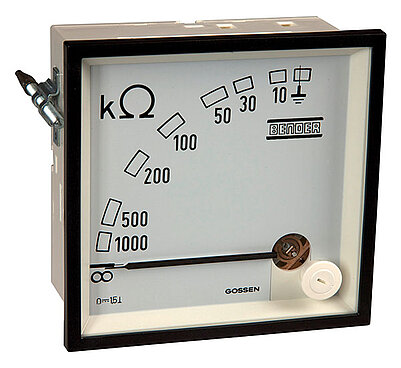

The analog measuring instruments of the 96…/72… series are designed for indication of measured values from Bender devices equipped with the appropriate current output.
- Display of measuring values from ground-fault monitoring devices
- Version S for increased shock and vibration resistance
- Input current 0…400 µA (7204/9604) / 0…20 mA (7220/9620)
The analog measuring instruments of the 96…/72… series are designed for indication of measured values from Bender devices equipped with the appropriate current output.
Features
- Dimensions: 72 x 72 mm (7204/7220) or 96 x 96 mm (9604/9620)
- Version S for increased shock and vibration resistance
- Scale background: white, imprint: black
7204 Series Variant(s)
| Type | Input current | Dimensions | Applicable ISOMETER® | Art. No. |
|---|---|---|---|---|
| 7204-1421 | 0…400 µA | 72 x 72 mm | iso685 series | B986763 |
| 9604-1421 | 0…400 µA | 96 x 96 mm | iso685 series | B986764 |
| 7204S-1421 | 0…400 µA | 72 x 72 mm | iso685 series | B986804 |
| 9604S-1421 | 0…400 µA | 96 x 96 mm | iso685 series | B986784 |
| 9620-1421 | 0…20 mA | 96 x 96 mm | iso685 series | B986841 |
| 9620S-1421 | 0…20 mA | 96 x 96 mm | iso685 series | B986842 |
| 9604-1621 | 0…400 µA | 96 x 96 mm | iso685 series | B986782 |
| 7220-1421 | 0…20 mA | 72 x 72 mm | iso685 series | B986844 |
| 7220S-1421 | 0…20 mA | 72 x 72 mm | iso685 series | B986848 |
Downloads for 7204 Series
| Name | Category | Size | Language | Timestamp | D-/B-Number |
|---|---|---|---|---|---|
| Analoganzeiger | CE Declarations of Conformity | 84.2 KB | 2022/08/1212.08.2022 | ||
| Measuring instruments 7204/7220/9604/9620 | Datasheets | 215.9 KB | EN | 2019/05/1313.05.2019 |
