ZT1590RS

The ZT1590 digital clock and timer is a complete, microprocessor-based device that displays both time of day and elapsed time information. The ZT1590 has a dual-row, 7-segment display with large, red LED characters, easily read in high ambient light. All features, as well as the device setup, may be carried out with the four, onboard pushbuttons, or on an optionally connected MK1550 clock remote. No DIP switch configuration is required.

The digital clock on the ZT1590 may be set to 12 hour or 24 hour mode. The time is displayed on the top display. If power is lost to the device, the clock will continue to run (with the display inactive) for at least 24 hours, without loss of time. The elapsed timer begins in minutes/seconds, and will automatically switch over to hours/minutes after reaching 59:59.

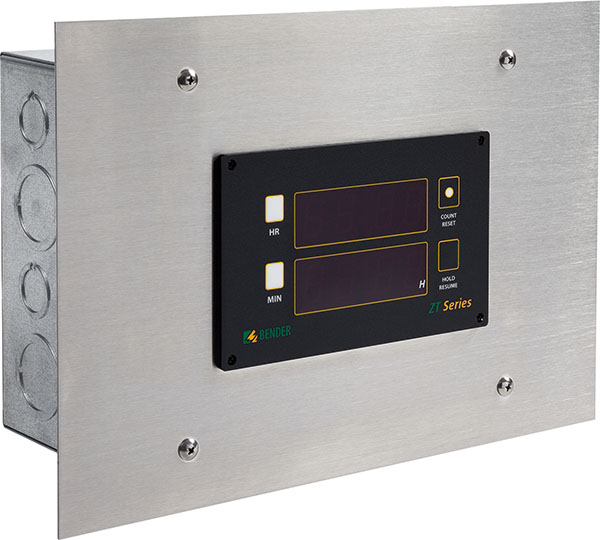

The ZT1590RS is a preassembled kit with clock and power supply, in a backbox with front trim. Refer to ZT1590 for standalone clock and components.

Questions? Contact us!

ZT1590RS
ZT1590RS

The ZT1590 digital clock and timer is a complete, microprocessor-based device that displays both time of day and elapsed time information. The ZT1590 has a dual-row, 7-segment display with large, red LED characters, easily read in high ambient light. All features, as well as the device setup, may be carried out with the four, onboard pushbuttons, or on an optionally connected MK1550 clock remote. No DIP switch configuration is required.

The digital clock on the ZT1590 may be set to 12 hour or 24 hour mode. The time is displayed on the top display. If power is lost to the device, the clock will continue to run (with the display inactive) for at least 24 hours, without loss of time. The elapsed timer begins in minutes/seconds, and will automatically switch over to hours/minutes after reaching 59:59.

The ZT1590RS is a preassembled kit with clock and power supply, in a backbox with front trim. Refer to ZT1590 for standalone clock and components.

Questions? Contact us!

Features

  • 12/24 hour clock time
  • Elapsed time in minutes/seconds automatically carried over to hours/minutes
  • All device set up and features carried out via connected MK1550 chronometer remote
  • Plugable connectors for simple installation
  • Utilizes external class 2 power supply for low voltage power
  • Power outage backup for at least 24 hours, no batteries required
  • Preassembled kit including clock and power supply in backbox with front trim

Applications

  • Operation Rooms
  • Intensive Care Units

ZT1590RS Variant(s)

Headline

Part NameOrdering No.
ZT1590RSB521300297

Optional Accessories for ZT1590RS

AccessoriesLink
MK1550 – Clock RemoteMK1550

Downloads for ZT1590RS

NameCategorySizeLanguageTimestampD-/B-Number
Clocks and Timers (US) Datasheets 2.0 MB EN2019/05/1313.05.2019
Isolated Power Planning Guide (US) Market Segment Brochures 3.8 MB EN2024/03/1212.03.2024
Healthcare Isolated Power Systems Catalog (US) Market Segment Brochures 6.5 MB EN2020/09/3030.09.2020
