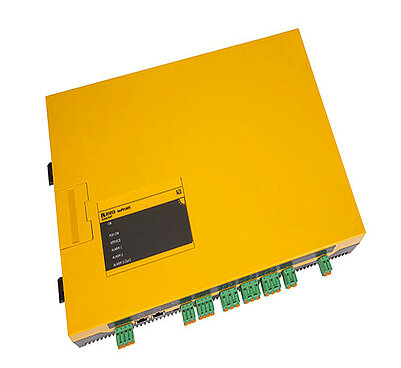

ISOMETER® isoPV1685 Series
- Application photovoltaic systems up to AC 1000 V/DC 1500 V
- Separately adjustable response values 200 Ω…1 MΩ
- Automatic adaptation to the system leakage capacitance
up to 2000 μF - Interface selectable RS-485 or Modbus
The device is used for insulation and residual current monitoring of large photovoltaic systems up to 1500 V designed as IT systems. The measurement method specially developed for slow voltage fluctuations (MPP-Tracking) monitors the insulation resistance even in systems equipped with large solar generator panels where extremely high system leakage capacitances against ground exist due to interference suppression methods. Adaptation to system-related high leakage capacitances also occurs automatically. The device generates locating current pulses required for ground-fault location. That allows the localization of the ground fault using permanently installed or mobile ground-fault locators. Integrated ground-fault monitoring allows fast signalling of a measured ground faults on the AC side (inverter, transformer).
- Application photovoltaic systems up to AC 1000 V/DC 1500 V
- Separately adjustable response values 200 Ω…1 MΩ
- Automatic adaptation to the system leakage capacitance
up to 2000 μF - Interface selectable RS-485 or Modbus
The device is used for insulation and residual current monitoring of large photovoltaic systems up to 1500 V designed as IT systems. The measurement method specially developed for slow voltage fluctuations (MPP-Tracking) monitors the insulation resistance even in systems equipped with large solar generator panels where extremely high system leakage capacitances against ground exist due to interference suppression methods. Adaptation to system-related high leakage capacitances also occurs automatically. The device generates locating current pulses required for ground-fault location. That allows the localization of the ground fault using permanently installed or mobile ground-fault locators. Integrated ground-fault monitoring allows fast signalling of a measured ground faults on the AC side (inverter, transformer).
Features
Only device version isoPV1685P provide a locating current injector.
- Insulation monitoring of large-scale photovoltaic systems
- Measurement of low-resistance insulation faults
- Separately adjustable response values Ran1 (alarm 1) and Ran2 (alarm 2) (both 200 Ω…1 MΩ) for prewarning and alarm. Ran1 ≥ Ran2 applies.
- Automatic adjustment to high system leakage capacitances up to 2000 μF, selectable range
- Connection monitoring of L+, L- for reverse polarity (DC only)
- Integrated locating current injector up to 50 mA (isoPV1685P only)
- Device self test with automatic message in the event of a fault
- Alarm relays separately adjustable for insulation fault 1, insulation fault 2
- CAN interface to output measured values, statuses and alarms
- RS-485 interface
– isoPV1685P: BMS bus, e.g. to control the insulation fault location
– isoPV1685RTU: BMS bus or Modbus (can be switched using the DIP switch) - μSD card with data logger and history memory for alarms
Applications
- Large PV systems designed as IT systems up to AC 1000 V/DC 1500 V
ISOMETER® isoPV1685 Series Variant(s)
| Type | Response value range | Supply voltage Us | Nominal system voltage Un | Art. No. |
|---|---|---|---|---|
| isoPV1685RTU-425 | 200 Ω…1 MΩ | DC 18…30 V | AC 0…1000 V/DC 0…1500 V | B91065603 |
| isoPV1685P-425 | 200 Ω…1 MΩ | DC 18…30 V | DC 0…1500 V | B91065604 |
Downloads for ISOMETER® isoPV1685 Series
| Category | Name | Size | Language | Timestamp | D-/B-Number |
|---|---|---|---|---|---|
| Declarations of Conformity | UKCA - isoXX1685 | 122.0 KB | 2023/06/12 05:32:0612.06.2023 05:32:06 | ||
| Application Notes | isoPV1685RTU - Modbuseinstellungen | 252.9 KB | DE | 2023/07/06 10:31:4706.07.2023 10:31:47 | D00007 |
| Application Notes | isoPV1685RTU - Modbus settings | 250.2 KB | EN | 2023/07/06 10:32:2806.07.2023 10:32:28 | |
| Market Segment Brochures | Erneuerbare Energien: Photovoltaik | 2.0 MB | DE | 2023/06/16 09:52:0616.06.2023 09:52:06 | |
| Market Segment Brochures | Renewable energies: Photovoltaics | 2.0 MB | EN | 2023/06/16 09:52:0616.06.2023 09:52:06 | |
| Manuals | CAN communication for isoPV1685 | 367.2 KB | EN | 2023/04/05 05:58:0005.04.2023 05:58:00 | D00007 |
| CE Declarations of Conformity | isoXX1685 | 89.1 KB | 2023/06/12 05:32:4812.06.2023 05:32:48 | ||
| Manuals | isoPV1685RTU/isoPV1685P | 2.4 MB | EN | 2023/04/05 05:58:0505.04.2023 05:58:05 | D00007 |
| Manuals | isoPV1685/isoPV1685PFR Appendix A | 494.6 KB | EN | 2019/05/13 10:31:5313.05.2019 10:31:53 | D00007 |
| Datasheets | isoPV1685RTU/isoPV1685P | 645.5 KB | EN | 2023/04/05 05:58:3705.04.2023 05:58:37 | D00007 |
| Quickstarts | isoPV1685RTU/isoPV1685P | 1.0 MB | EN | 2023/04/05 06:03:4205.04.2023 06:03:42 | D00007 |
