RCMB104

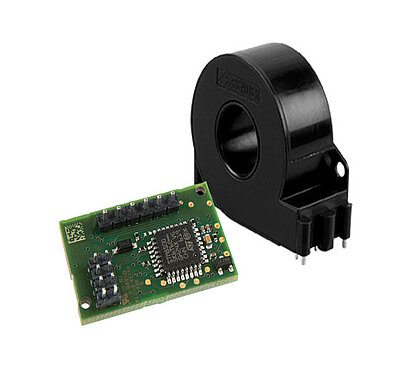

The AC/DC sensitive residual current monitoring module RCMB104, with patented measurement method, is used in combination with a measuring current transformer CTBC17 and a type A RCD which has to be provided in the installation for fault current monitoring of AC charging systems for electric vehicles in which AC or DC fault currents can occur. The rated voltage Un is 250 V and the rated current (charging current) In = 1 x 48 A / 3 x 32 A. The RCMB104 is suitable for integration into a charging unit (IC-CPD, wall box) according toIEC 61851-22, IEC 62752 and UL 2231-2.
The RCMB104 is only intended for purchase by the manufacturer of charging systems.
More information:
The AC/DC sensitive residual current monitoring module RCMB104, with patented measurement method, is used in combination with a measuring current transformer CTBC17 and a type A RCD which has to be provided in the installation for fault current monitoring of AC charging systems for electric vehicles in which AC or DC fault currents can occur. The rated voltage Un is 250 V and the rated current (charging current) In = 1 x 48 A / 3 x 32 A. The RCMB104 is suitable for integration into a charging unit (IC-CPD, wall box) according toIEC 61851-22, IEC 62752 and UL 2231-2.
The RCMB104 is only intended for purchase by the manufacturer of charging systems.
More information:
Features
- Three outputs (DC, RMS, Error)
- Measuring range ±300 mA
- Residual current resolution 0.2 mA
- Patented measurement technology (Patents: EP 2 571 128 / US 9,397,494 / ZL 201210157968.6 / CN 103001175, EP 2 813 856)
- Load current up to 48 A r.m.s. (single-phase) or 3 x 32 A r.m.s. (three-phase)
- Fault output (integrated self monitoring and test functions)
- High insensitivity to external interferences
- Available variants for application according to DIN EN 61851-22/IEC 62752 and UL 2231-2
- Wide range of use even in severe environments (e.g. in the event of external interference fields)
- In applications according to DIN EN 61851-22 or IEC 62752, the RCMB104 can replace a type B RCD when combined with a type A RCD and a suitable switching device (e.g. a power relay).
Applications
- AC charging systems for electric vehicles
RCMB104 Variant(s)
| Type | Description | Art. No. |
|---|---|---|
| RCMB104-1 | 0…2 kHz IEC 6/30 mA | B94042480 |
| RCMB104-2 | 0…2 kHz UL 2231 5/20 mA | B94042481 |
| CTBC17 | Measuring current transformer Ø = 17 mm | B98080070 |
| CTBC17-Cable180MM | Connection cable 180 ± 30 mm | B98080540 |
| CTBC17-Cable325MM | Connection cable 325 ± 25 mm | B98080541 |
| CTBC17-Cable1470MM | Connection cable 1470 ± 30 mm | B98080542 |
